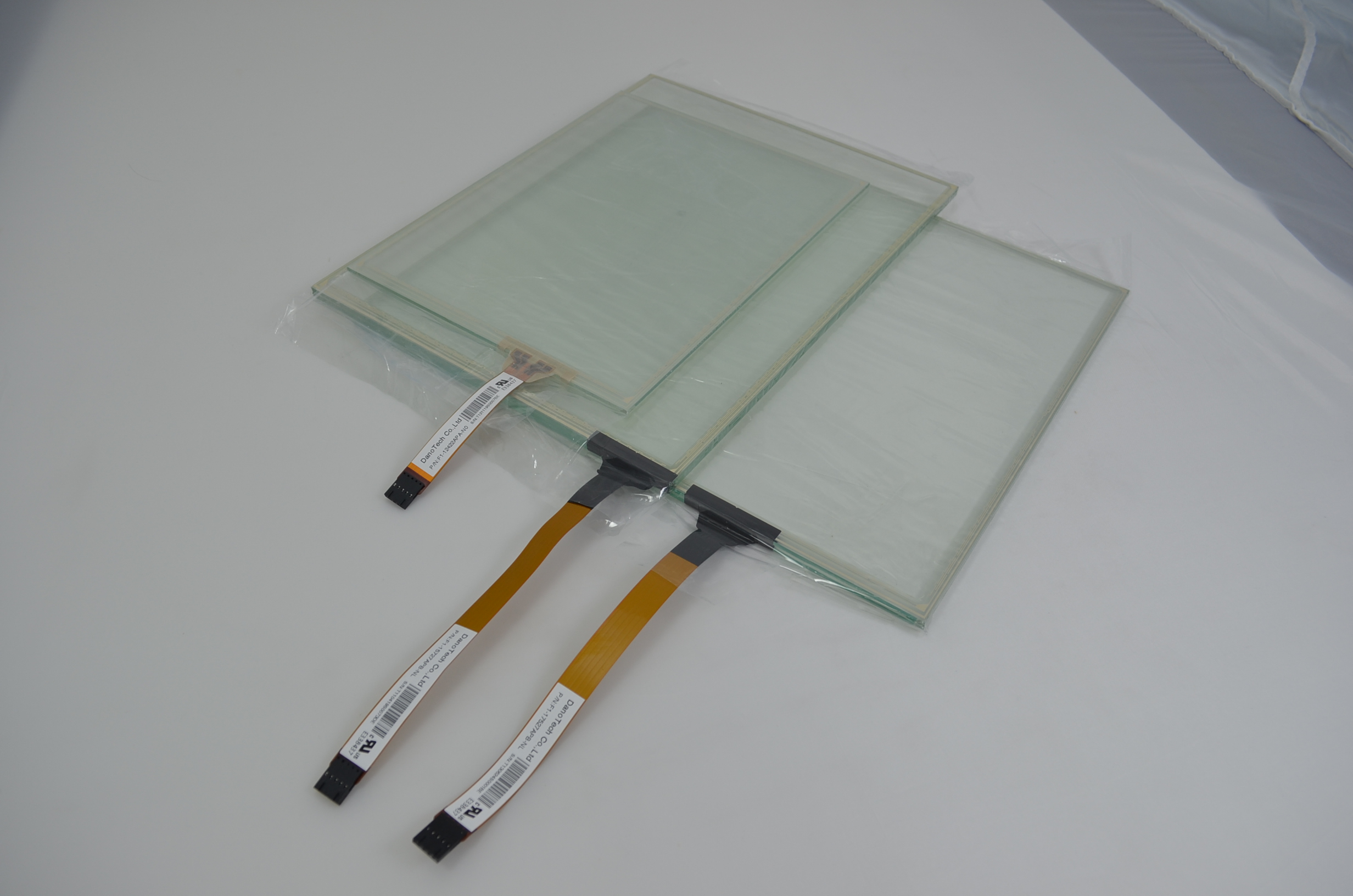

 For Various outdoor applications, Danotech has launched our "Lamination Surface Capacitive Touch Panel" series. It is not only with all the features and advantages of SCT's but also with extra strength (coming from the 4mm tempped glass substrate laminated underneath), heavy AG coating, and LCF (light control film) option for vandal proof, anti-glare, and privacy purposes.
 Specifications are subjects to be changed without notice.
| |
Size |
10"~24.6" (without LCF); 15"~17" (with LCF) |
| |
Input Method |
Finger |
| |
Thickness |
7.4 mm / 8.18 mm (with LCF) |
| |
Tail |
206 mm |
| |
Resolution |
Max. to 2048 x 2048 |
| |
Interface |
USB and RS-232 |
| |
Hardness |
More than 9H per ASTM D3363 |
| |
Linearity Accuracy |
Max Error≦1.0 % base on the diagonal dimension of the screen |
| |
Transmittance |
With LCF ≧57 %; Without LCF ≧89 %±2 |
| |
Adhesion |
Cross-cut tester without deteriorations per ASTM-D3359 |
| |
Abrasion |
Exceeds severe abrasion test per MIL-C-675C |
| |
Surface Durability |
Over 300 million touches without noticeable degradation |
| |
Operating Temperature |
-40°C to 70°C |
| |
Storage Temperature |
-50°C to 85°C |
| Wide Series |
| Size | PN | Dimension (mm) | Tail Exit | Dwg. |
|---|
| 22.4W |
W1-22447APA-GL |
VA：479.00 x 307.60
OA：492.00 x 319.00 |
02:00 |
 |
|
| 4:3 Series |
| Size | PN | Dimension (mm) | Tail Exit | Dwg. |
|---|
| 6.8 |
F1-06827APA-NL |
VA：138.00 x 104.10
OA：151.00 x 115.50 |
03:00 |
|
| 10.8 |
F1-10827APA-NL |
VA：217.94 x 167.90
OA：230.94 x 179.30 |
09:00 |
|
| 12.4 |
F1-12427APA-NL |
VA：250.01 x 191.01
OA：265.50 x 203.20 |
08:00 |
|
| 12.4 |
F1-1246GAPA-NL |
VA：250.01 x 191.01
OA：265.50 x 203.20 |
08:00 |
|
| 15.7 |
F1-15727APB-NL |
VA：316.48 x 241.81
OA：330.20 x 254.00 |
07:00 |
|
| 15.7 |
F1-15728APB-NC |
VA：316.48 x 241.81
OA：330.20 x 254.00 |
07:00 |
|
| 17.5 |
F1-17527APB-NL |
VA：345.31 x 281.48
OA：357.51 x 295.20 |
11:00 |
|
| 17.5 |
F1-17528APB-NC |
VA：345.31 x 281.48
OA：357.51 x 295.20 |
11:00 |
|
| 19.4 |
F1-19417APA-NL |
VA：383.31 x 308.13
OA：396.01 x 324.00 |
11:00 |
|
| 19.8 |
F1-19837APA-GL |
VA：389.59 x 316.26
OA：402.59 x 327.66 |
08:00 |
|
|
